Introduction: Why Cylinder Head Material Matters in Diesel Engines
The cylinder head is the heart of any diesel engine’s combustion chamber. It must withstand extreme pressures, heat, and vibration—especially in modern engines designed for power, fuel efficiency, and longevity. Traditionally, gray cast iron has been the go-to material due to its affordability and damping properties. However, Compact Graphite Iron (CGI) is now emerging as a superior alternative in both performance and durability.
This blog dives deep into the technical comparison of CGI vs traditional iron, the science behind CGI’s strength, and why Heavy Duty Kits is leading the charge in adopting this innovation for heavy-duty applications.
What Is Compact Graphite Iron (CGI)?
Compact Graphite Iron (CGI) is a cast iron alloy with a vermicular graphite microstructure. Unlike the flake graphite in gray iron or spheroidal graphite in ductile iron, CGI’s graphite is short, stubby, and worm-like. This structure gives CGI its unique balance of:
-
Strength
-
Stiffness
-
Thermal conductivity
-
Fatigue resistance
CGI is the sweet spot between gray iron (good for thermal conductivity but weak under stress) and ductile iron (stronger but less thermally efficient).
Graphite Structures Compared
| Property | Gray Iron | Ductile Iron | Compact Graphite Iron |
|---|---|---|---|
| Graphite Shape | Flakes | Spheroids | Vermicular (worm-like) |
| Tensile Strength | 200–300 MPa | 400–700 MPa | 350–600 MPa |
| Thermal Conductivity | High (~60 W/mK) | Low (~35 W/mK) | Medium (~45–55 W/mK) |
| Stiffness | Moderate | Low | High |
| Fatigue Resistance | Low | Excellent | Very Good |
| Machinability | Excellent | Poor | Moderate |
Why Compact Graphite Iron is Ideal for Cylinder Heads
1. Superior Strength for High-Pressure Combustion
Modern diesel engines run at higher cylinder pressures for improved efficiency. CGI’s structure allows it to handle over 200 bar of cylinder pressure—up to 75% more strength than gray iron.
2. Better Thermal Conductivity Than Ductile Iron
CGI allows faster heat dissipation than ductile iron, minimizing thermal fatigue and cracking, especially in turbocharged engines.
3. Enhanced Durability
CGI cylinder heads last longer under stress, with less warping or cracking. This makes them perfect for:
-
Commercial trucks
-
Heavy machinery
-
Marine engines
-
High-performance diesel racing engines
4. Noise and Vibration Damping
Though not as quiet as gray iron, CGI still retains good damping capabilities—quieter than aluminum and more stable than ductile iron.
Manufacturing Challenges with CGI—and Why They’re Worth It
Producing CGI is more complex than standard castings. It requires:
-
Tight control of magnesium and sulfur during melt
-
Controlled cooling rates
-
Special molds and core materials
This precision increases cost but results in a stronger, more reliable product. At Heavy Duty Kits, we partner with foundries that specialize in high-quality CGI production, ensuring OEM-level or better durability.
Real-World Applications of CGI in Diesel Engines
“Which diesel engines use CGI cylinder heads?”
Major OEMs are already using CGI in their premium engines:
-
Ford 6.7L Power Stroke – CGI block and heads
-
Cummins ISX – CGI used in upgraded aftermarket cylinder heads
-
Navistar MaxxForce – CGI blocks and heads in high-performance applications
-
Caterpillar C13/C15 race applications – CGI aftermarket heads increasing
CGI vs Traditional Iron Cylinder Heads: Pros & Cons
| Feature | Traditional Gray Iron | Compact Graphite Iron (CGI) |
|---|---|---|
| Cost | Low | Higher (but justified) |
| Strength | Moderate | High |
| Heat Resistance | Moderate | High |
| Thermal Conductivity | High | Medium |
| Fatigue Life | Poor | Excellent |
| OEM Adoption | Standard | Growing |
| Aftermarket Availability | High | Now increasing |
Long-Term Benefits of Upgrading to CGI Cylinder Heads
-
Reduced Downtime: Stronger heads mean fewer cracks and failures.
-
Lower Maintenance Costs: Less warping, less head gasket wear.
-
More Power Potential: Withstand tuning and turbo upgrades.
-
Fuel Efficiency: CGI heads enable tighter tolerances for better combustion.
Heavy Duty Kits: Setting the Benchmark in Diesel Cylinder Heads
At Heavy Duty Kits, we’re proud to be one of the first diesel aftermarket suppliers to champion CGI technology for cylinder heads.
What Sets Our Cylinder Heads Apart:
-
CGI-based castings with reinforced valve bridges and deck areas
-
OEM+ machining tolerances
-
Pressure-tested and inspected for cracks, porosity, and straightness
-
Available for Cummins, Caterpillar, Detroit Diesel, and John Deere
We invest in material innovation, quality control, and expert support, ensuring our customers receive the best-performing diesel parts on the market.
Innovation That Works
Our CGI heads are used in fleets operating in:
-
Extreme climates (heat and cold)
-
Heavy towing
-
Long-haul trucking
-
Mining and construction

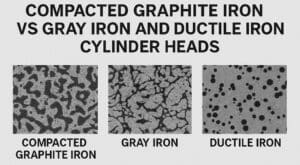

Microstructure of CGI vs Gray Iron
Image: Microscopic comparison of graphite structures in gray iron, ductile iron, and compact graphite iron.
FAQs: Compact Graphite Iron in Diesel Cylinder Heads
What is the main advantage of Compact Graphite Iron over gray iron?
CGI offers significantly greater strength and fatigue resistance, allowing it to perform better under high pressure and temperature conditions common in diesel engines.
Is CGI more expensive than gray iron?
Yes, but the performance and durability benefits often justify the investment—especially in commercial, fleet, or performance applications.
Can I replace a traditional head with a CGI version?
Yes. Many CGI heads are drop-in replacements, but ensure you’re buying from a supplier like Heavy Duty Kits that maintains OE specs and quality.
Are CGI heads harder to machine or repair?
CGI is harder than gray iron and requires carbide tooling for machining. Welding repairs are not recommended; replacement is the best option if damage occurs.
Which engines can I get CGI heads for?
Heavy Duty Kits offers CGI heads for popular engines like:
-
Caterpillar C15
-
Detroit Series 60
-
John Deere 6068
Conclusion: The Future of Diesel is Stronger with CGI
As diesel engines evolve, so must the materials used to build and repair them. Compact Graphite Iron is the future of cylinder head technology, offering unmatched durability, thermal performance, and strength. While traditional gray iron still has its place, CGI is redefining reliability in the world of heavy-duty diesel.
At Heavy Duty Kits, we’re proud to bring this innovation to diesel professionals across industries. Whether you’re building for performance or uptime, our CGI-based cylinder heads are tested, trusted, and engineered to exceed expectations.
