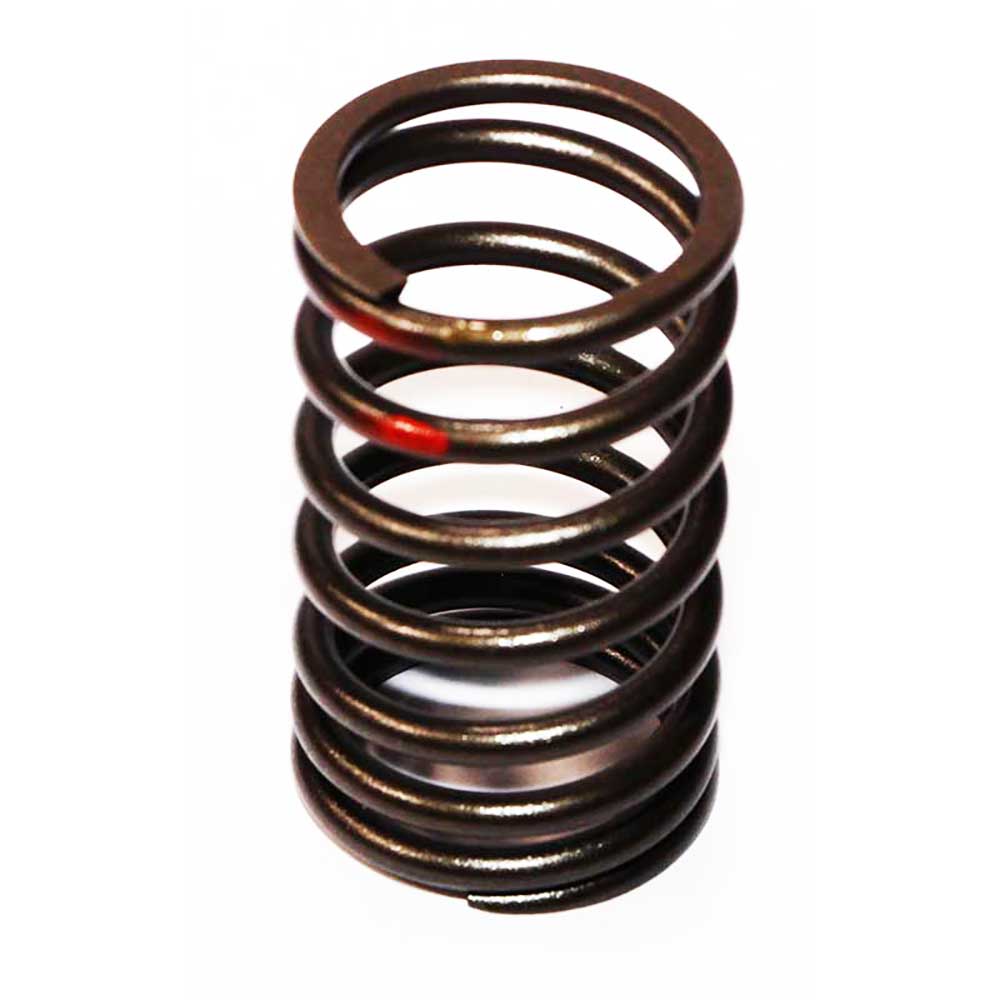

Komatsu Valve Spring 6204-41-4431

The Komatsu Valve Spring 6204-41-4431 is identified in the supplied parts catalog as a CYLINDER HEAD & COMPONENTS for specific Komatsu diesel engine and equipment configurations. Cataloged engine models include 4D95L-W-1, 4D95L-1K-1L, 4D95L-1AA/1AA-7/1BB/1CC, and 4D95L-1FF/GG/W/BW. Listed machine applications include WA40-1, WA70-1, PC60-3, PC60-5, and PC60L-5. Use the complete model and serial-number details below to compare this part with the equipment being serviced.

What is 6204-41-4431 used for?

Part number 6204-41-4431 is cataloged as a Valve Spring. It appears in the CYLINDER HEAD & COMPONENTS parts group. The correct selection depends on the engine model, machine model, and the applicable serial-number range.

Compatible engine models

4D95L-W-1, 4D95L-1K-1L, 4D95L-1AA/1AA-7/1BB/1CC, 4D95L-1FF/GG/W/BW, 4D95L-E-2A, S4D95L-1A/1B/1G, S4D95L-1K, SA6D95L-1AF-1, S6D95L-1, S6D95L-1MM, S6D95L-1NN/1PP, SA6D95L-1

Engine models with serial-number ranges

4D95L-W-1 (Build 1A) ? 10001-Up | 4D95L-1K-1L (Build 1B) ? 15548-Up | 4D95L-1AA/1AA-7/1BB/1CC (Build 1C) ? 49965-Up | 4D95L-1FF/GG/W/BW (Build 1D) ? 131803-Up | 4D95L-E-2A (Build 1E) ? 100005-Up | S4D95L-1A/1B/1G (Build 1H) ? 48811-Up | S4D95L-1K (Build 1J) ? 135080-Up | SA6D95L-1AF-1 (Build 2D) ? Not Provided | S6D95L-1 (Build 2E) ? 10001-Up | S6D95L-1 (Build 2F) ? 35360-Up | S6D95L-1MM (Build 2G) ? 106426-Up | S6D95L-1NN/1PP (Build 2H) ? 106426-Up | SA6D95L-1 (Build 2J) ? 35398-Up

Application models without serial numbers

WA40-1, WA70-1, PC60-3, PC60-5, PC60L-5, PC60U-5, PW60-3, PC80-3, PC75UU-1, PC60-6, PC60L-6, PC70-6, PC90-1, PC60-7, PC60-7B, PC75UU-2, PC60-7 / PC60-7B, PC75UU-3, PC78US-5, PC78US-6-N, PC100-5, PC120-5, PC120-5, PC120-5C, PC120-5M, PC120-5Z, PC130-5, PC100-6 / 6Z, PC100L-6, PC120-6 / 6Z, PC130-6, PW130-6K, PC200-6 / LC-6, PC200-6Z, PC200LC-6Z, PC210-6, PC210LC-6, PC220-6 / LC-6, PC220LC-6, PC230-6 / LC-6, PC250LC-6, PC150-3 / LC-3, PC180LC-C / LC-3K, PC180LLC-C / LLC-3K, PC180NLC-3K, PW100-3, WA150-1, WA180-1, GD510R-1, GD511A-1, PC150-5 / LC-5, PC200-5C, PC200-5 / LC-5, PC200-5 /LC-5, PC200-5T, PC200-5Z, PC200-6, PC200LC-6, PC200LC-6-A, PC200LC-6H, PC200LC-6H-A, PC210-6, WA180-3, WA250-3, PC200-5 / LC-5, PC220-5, PC220LC-5, PC220LC-5

Applications with serial-number ranges

WA40-1 S/No. 1001-Up, WA70-1 S/No. 10001-Up, PC60-3 S/No. 18001-Up, PC60-5 S/No. 20501-Up, PC60L-5 S/No. 7501-Up, PC60U-5 S/No. 4501-Up, PW60-3 S/No. 2001-Up, PC80-3 S/No. 2001-Up, PC75UU-1 S/No. 1001-Up, PC60-6 S/No. 28001-Up, PC60L-6 S/No. 8001-Up, PC70-6 S/No. 34101-Up, PC90-1 S/No. 1001-Up, PC60-7 S/No. 45001-Up, PC60-7B S/No. 45001-Up, PC75UU-2 S/No. 5001-Up, PC60-7 / PC60-7B S/No. 45001-Up, PC75UU-3 S/No. 15001-Up, PC78US-5 S/No. 1001-Up, PC78US-6-N S/No. 4001-Up, PC100-5 S/No. 28001-Up, PC120-5 S/No. 30001-Up, PC120-5 S/No. A40001-Up, PC120-5C S/No. 36601-Up, PC120-5M S/No. 36601-Up, PC120-5Z S/No. 36601-Up, PC130-5 S/No. 36601-Up, PC100-6 / 6Z S/No. 40001-Up, PC100L-6 S/No. 15001-Up, PC120-6 / 6Z S/No. 45001-Up, PC130-6 S/No. 45001-Up, PW130-6K S/No. K30001-Up, PC200-6 / LC-6 S/No. A80001-Up, PC200-6Z S/No. 80001-Up, PC200LC-6Z S/No. 80001-Up, PC210-6 S/No. 30001-U, PC210LC-6 S/No. A80001-Up, PC220-6 / LC-6 S/No. 50001-Up, PC220LC-6 S/No. A80001-Up, PC230-6 / LC-6 S/No. 10001-Up, PC250LC-6 S/No. A80001-Up, PC150-3 / LC-3 S/No. 3001-Up, PC180LC-C / LC-3K S/No. 1001-Up, PC180LLC-C / LLC-3K S/No. 1001-Up, PC180NLC-3K S/No. 1001-Up, PW100-3 S/No. 1601-Up, WA150-1 S/No. 10001-Up, WA180-1 S/No. 10001-Up & A10375-Up, GD510R-1 S/No. 15001-Up, GD511A-1 S/No. 10001-Up, PC150-5 / LC-5 S/No. 6001-Up, PC200-5C S/No. 45001-Up, PC200-5 / LC-5 S/No. 45001-Up, PC200-5 /LC-5 S/No. A47282-A70000, PC200-5T S/No. 58019-Up, PC200-5Z S/No. 45001-Up, PC200-6 S/No. 80001-Up, PC200LC-6 S/No. 80001-Up, PC200LC-6-A S/No. 80001-Up, PC200LC-6H S/No. 80001-Up, PC200LC-6H-A S/No. 80001-Up, PC210-6 S/No. 30001-Up, WA180-3 S/No. 50001-52999, WA250-3 S/No. 50001-52999, PC200-5 / LC-5 S/No. A70001-Up, PC220-5 S/No. 35001-Up, PC220LC-5 S/No. 35001-Up, PC220LC-5 S/No. A35401-A70000-Up

How do I confirm fitment?

Match 6204-41-4431 to the existing part number and verify the complete engine model, equipment model, and serial number. A shared model name does not confirm compatibility because production changes can affect the required component.

Frequently asked question

Will 6204-41-4431 fit every listed Komatsu machine?
No. Fitment is limited to the cataloged engine, application, and serial-number combinations. Confirm all identifying information before ordering.
