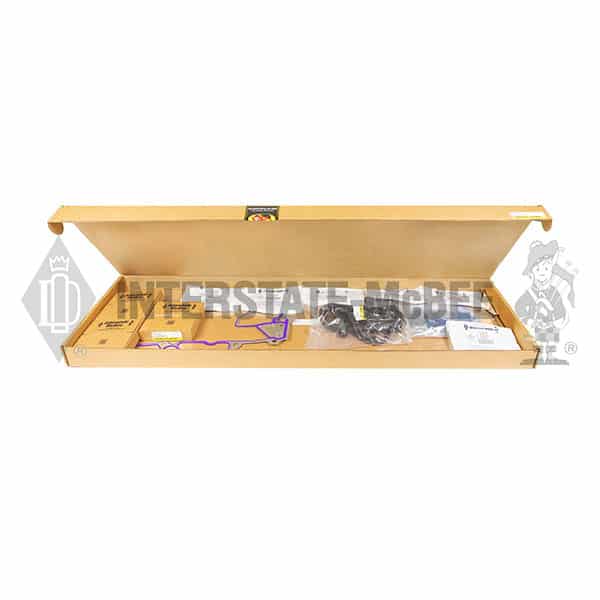

Replacement Upper Engine Gasket Set for Cummins ® ISX/QSX Applications ISX – Dual Cam – EGR Engines OEM Cross References: 4352145 Superseded/Alternate Numbers: M-4955596

What’s Included

1 x ISX Upper Engine Gasket Set

Fits: EGR Engines

Year: 1997-2010

Includes:

2 x Oil Manifold O-Ring Seals | 3052586

1 x Flange Gasket | 3101268

1 x Turbocharger Gasket | 3102314

1 x Exhaust Gas Re-Circulation Valve Gasket | 3104229 | 3682551

1 x Gasket | 3104230 | 3101917

6 x Purple HPI O-Ring Seals | 3330537

6 x Yellow HPI O-Ring Seals | 3330538

6 x Green HPI O-Ring Seals | 3347937 | 205216

6 x HPI/XPI O-Ring Seals | 3347939 | 3076096

1 x O-Ring Seal | 3627695

1 x Grommet Seal | 3678762

1 x Connection Gasket | 3678770

1 x O-Ring Seal | 3678786

1 x Camshaft Cover Gasket | 3679931

1 x Camshaft Cover Gasket | 3679932

1 x O-Ring Seal | 3682177

1 x Electronic Control Module | 3682577

1 x Thermostat Housing Cover | 3682673

4 x Exhaust Manifold Gaskets | 3682710

1 x Exhaust Manifold Gasket | 3682940

1 x Thermostat Housing Gasket | 3684336 | 3680601

6 x Sealing Washers | 3963983 | 3935171 | 3918191 | 3903037 | 3283280

2 x Sealing Washers | 3963988 | 3937155 | 3935172

2 x O-Ring Seals | 4010600

4 x Cavity Plugs | 4089255

1 x O-Ring Seal | 4299124 | 3679933

1 x O-Ring Seal | 4299125 | 3679934

1 x Plain Hose | 4919970 | 4952644 | 3682842

1 x Rectangular Strip Seal | 4962721 | 4059183 | 3679637

1 x Fuel Control Housing Gasket | 4965689 | 4076587 | 3348526

1 x Camshaft Cover Seal | 4985660 | 4101881 | 4026522 | 3679573 | 3411878

1 x Camshaft Cover Seal | 4985661 | 4101882 | 4026523 | 3679574 | 3411879

1 x ISX Cylinder Head Gasket | 4299098 | 4926316 | 4059350 | 3685834

1 x O-Ring Seal | 3033247 | 3024468

1 x Turbocharger Drain Flange Gasket | 3680324

OE Replacements: 4955596, 4352145, 4089169

Application & Fitment

• Engine Make: Cummins
• Engine Model / Application: ISX/QSX

Confirm the original part number and engine identification before ordering. Where applicable, also verify serial-number range, production year, piston style, bearing size or other configuration notes shown in the product information.

Part Numbers & Cross References

• OEM Cross Reference: 4352145
• Alternate / Superseded: M-4955596
• Interstate-McBee Reference: M-4352145

Need Help Confirming Fitment?

Use the engine model, serial number and original part number when checking compatibility. For kits and sets, review the complete component breakdown above before ordering because contents can vary by engine configuration.
