Platinum Overhaul Kit Cummins ISX Engine – Dual Camshaft

Brand: Interstate Mcbee

SKU: HDK-ISX-SOHC-POH

$12,995.00

In Stock

Engine Serial # *

  • Low Prices Price match guarantee
  • Guaranteed Fitment Always the correct part
  • Easy Returns Quick & Hassle Free
  • In-House Experts We know our products

Description

Cummins ISX15 Platinum Overhaul Rebuild Kit

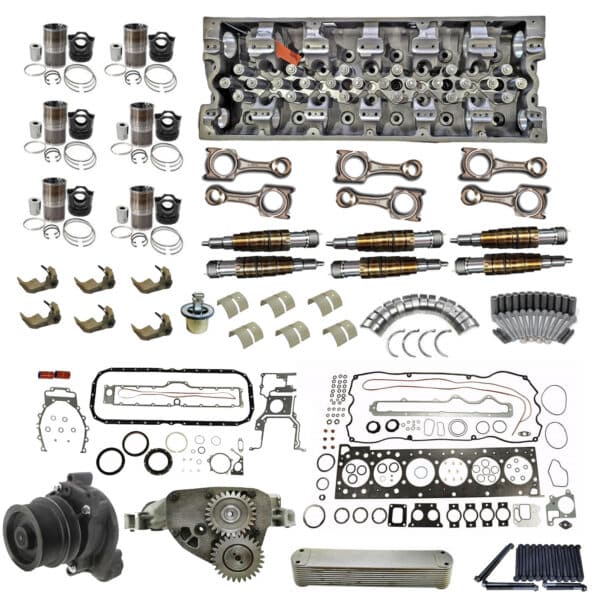

Cummins ISX15 (SOHC) Platinum Overhaul Kit Includes:

6 x Piston

6 x Piston Ring Set

6 x Piston Pin

12 x Piston Pin Retainer

6 x Liner

6 x Liner O-Ring

1 x Main Bearing Set – Std.

6 x Rod Bearing – Std.

2 x Thrust Plate – Std.

1 x Upper Gasket Kit

1 x Oil Pan Gasket

1 x Pressure Relief Valve

1 x O-ring P/U Tube

1 x New Cylinder Head, Loaded with Valves & Springs

1 x Head Bolt Kit

1 x Exhaust Manifold Stud Kit

1 x New Water Pump

1 x New Oil Cooler

1 x New Oil Pump

6 x Piston Cooling Nozzle

6 x Connecting Rod

6 x Reman Injectors

1 x Thermostat



Free Shipping to The Lower 48 States | Call +1-888-642-6460 for freight Info for Other States and Countries. Or Email at parts@heavydutykits.com





************* Optional Addons***************

Turbo Conversion Kit Includes:

New Turbocharger ( Select Turbo Type Wastegate, Non Wastegate)

Exhaust Manifold (3 PC)

Mounting Hardware & Gaskets

Oil Feed Line

Oil Return Line

Fitting

90 Degree Elbow

Clamp & O-ring



Notes: Turbocharger Conversion kit required the EGR Delete and ECM Reprogramming to work. ECM Reprogramming is not included in Turbo Conversion kit.



Reasons to Choose Cummins ISX15 Platinum Overhaul Kit

  • This ISX15 Platinum Kit have complete parts required to overhaul Cummins ISX15 Engine as per Service manual Instructions
  • 2 Years Warranty on Cummins ISX15 Rebuild Parts
  • New Cummins ISX15 cylinder Heads with brand new Durable Casting which can ensure performance
  • New Cummins isx15 water pump, oil pump & oil coolers ensure no leaking and proper flow of oil and water to engine.
  • New Thermostats monitor the engine temperature leaving no doubt

OE Replacements: 5693738, 5579460, 4376179, 5579461CUM, 5579461

Additional information

Weight 450 lbs
Dimensions 0.00 × 0.00 × 0.00 in
