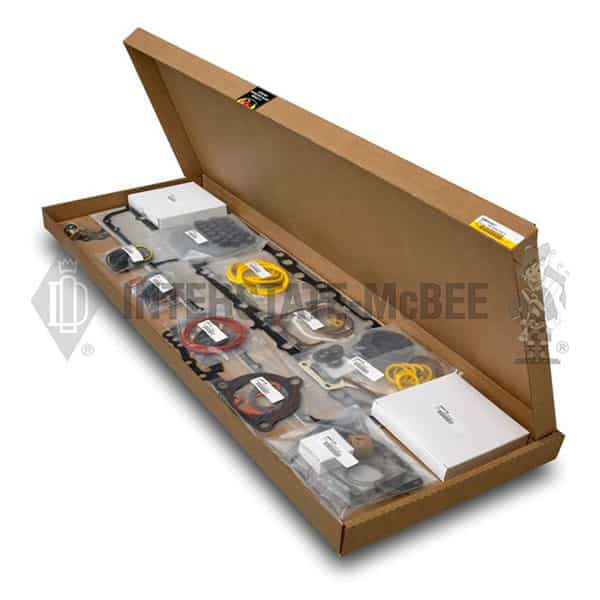

Replacement Major Overhaul Gasket Set for Caterpillar ® C10/C11/C12/C13 Applications C12 – 2KS389 & Up – 9NS16228 & Up – 9SM, CPD, MBL & TME – 2 Boxes

What’s Included

1 x Overhaul Gasket Set

Fits ESN: 2KS389 & up 9NS16228 & up 9SM, CPD, MBL & TME

1 x Overhaul Gasket Set Includes:

1 x Cylinder Headset

1 x O-Ring Seal (335853, 033-5853, 335853, CAT335853)

4 x O-Ring Seals (2147568, 214-7568)

4 x O-Ring Fuel Line Seals (3J1907, 3K7508, 068-3673, 3J1907, 2C1951, 2166158, 683673, 333743, 8U0365, 3D-7455, 3J-1907, 033-3743, 8U-0365, 068-3673, 216-6158, 2C-1951, 3K-7508, 3D7455)

2 x O-Ring Seals (3P647, 3P0647, 2U0722)

2 x Thermostat Seals (3S9643, 3S-9643, 4L-8098, 4L8098)

6 x O-Ring Seals (4G4972)

6 x O-Ring Seals (5P3456)

1 x 6mt Valve cover Seal Stock, 5P5678-6)

1 x O-Ring Seal (6V3251, 6V-3251)

1 x O-Ring Seal (6V4589)

1 x O-Ring Seal (6V5048, 1887535, 6V-5048, 9X-0934, 188-7535, 9X0934)

1 x Air Intel Manifold Gasket (1013125, 9Y6186, 1548587, 9Y-6186, 101-3125, 154-8587)

1 x O-Ring Seal (6V5063, 6V-5063, 258-7205, 2587205)

2 x O-Ring Seals (6V6609, 6V-6609)

6 x Fuel System Gasket Set, 2245797, 1933325)

1 x O-Ring Seal (6V8676, 7C5828)

8 x Isolators, 7C8292)

1 x Gasket (7E5555)

2 x O-Ring Seals (7L6580, 7L-6580)

3 x Intake Manifold Gaskets, 7W5164)

6 x O-Ring Seals (8L2777, 8L-2777, 6L-9795, 6L9795)

1 x Gasket (9Y1758, 9Y-1758)

1 x Valve Cover Gasket (1095309, 4P2697, 9Y4059)

1 x Gasket (7E7912)

1 x Turbocharger Gasket (1P451, 1P-0451, 1P0451)

6 x Exhaust Manifold Gaskets, 1095313, 7C0324, 1006175)

4 x Water Lines Group Gaskets, 1182797, 4P7593, 7C2597)

1 x Regulator Gasket (1314164)

1 x Cylinder Head Gasket (1873307, 1757400, 1620682)

1 x O-Ring Seal (2147566, 217-7566)

1 x Air Compressor Set

1 x Integral Seal (1292181)

1 x Air Compressor Gasket (8M7065, 6L1884)

1 x Turbocharger Set

1 x O-Ring Seal (0336033)

1 x Gasket (8H9788)

1 x O-Ring Seal (8L2786, 8L-2786, 7L6385, 775538, 6L9776, 6L-9776, 627822, 607582, 077-5538, 060-7822, 060-7582)

1 x Gasket (1008525)

1 x Gasket (1011635)

1 x O-Ring Seal (6V7350)

1 x O-Ring Seal (1142687, 114-2687)

1 x Gasket (1886126, 9Y3595)

1 x Turbo Lines Group Gasket (1978418, 197-8418)

1 x Turbo Lines Group Gasket (1978419, 197-8419)

1 x Turbocharger Gasket (1S4295, 1S-4295, 379-0175, 3790175, 7H-1558, 7H1558)

1 x O-Ring Seal (3J7354, 3J-7354, 006-3710, 063710, 077-3100, 077-4866, 077-5022, 095-1759, 098-9384, 4J-2209, 4J2209, 773100, 774866, 775022, 7E6738, 7X-5362, 7X-8720, 7X5362, 7X8720, 8T-4461, 8T4461, 951759, 983894)

1 x Injector O-Ring Seal (5P8066)

1 x O-Ring Seal (8C3089, 1237602)

1 x Water Pump Set

1 x Gasket (1008525)

1 x Gasket (1011635)

1 x O-Ring Seal (6V7350)

1 x Central & Lower Set

2 x O-Ring Seals (619458, 7L2178)

1 x Oil Pan Seal (1095308)

1 x O-Ring Seal (2147568, 214-7568)

1 x O-Ring Seal (5P821, 6V6756, 8T8125)

1 x O-Ring Seal (6V5048, 6V-5048, 188-7535, 1887535, 9X-0934, 9X0934)

1 x Isolator (7C8296)

1 x Front Cover Set

2 x O-Ring Seals (619455)

1 x Ring Seal (2203373)

1 x Gasket (2529685)

1 x O-Ring Seal (3H976)

2 x O-Ring Seals (3K360, 2C-1324, 2C1324, 3D-2823, 3D2823, 3K-0360, 3K-7509, 3K0360, 3K7509, 5F-5405, 5F5405, 7F-2051, 7F2051)

1 x Copper Washer (4K9841)

2 x O-Rings Seal (5P8068)

4 x Washers (5R7137)

1 x Gasket (6D1004)

2 x O-Ring Seals (6V3251, 6V-3251)

1 x O-Ring Seal (6V3834)

2 x Washer Seals (0922570)

2 x O-Ring Seals (6V5134)

1 x O-Ring Seal (6V6609, 6V-6609)

1 x O-Ring Seal (6V7350)

1 x O-Ring Seal (6V8397, 6V-8397, 8T-4057, 8T4057, 8U-1671, 8U1671)

3 x O-Ring Seals (6V8398, 8U9130)

1 x O-Ring Seal (1075769)

1 x Integral Seal (1292181)

1 x Gasket Cover (1337068)

1 x Crankshaft Seal Group, 1694166, 2264755)

1 x Integral Seal (1742475)

1 x O-Ring Seal (1H7339, 5H6497, 1H6203, 0779927, 0546853)

1 x Front Structure Gasket Set (2164781)

1 x Crankshaft Seal Group (1260110)

1 x Fuel System Set

1 x O-Ring Seal (0336033)

2 x Washer Seals (0336033)

1 x Washer Seal (0922570)

3 x Fuel Priming Pump Gaskets, 1P436, 1P0436)

9 x O-Ring Seals (2147568, 214-7568 )

3 x O-Ring Fuel Line Seals (3J1907, 033-3743, 068-3673, 068-3673, 216-6158, 2166158, 2C-1951, 2C1951, 333743, 3D-7455, 3D7455, 3J-1907, 3K-7508, 3K7508, 683673, 8U-0365, 8U0365)

1 x O-Ring Seal (3K360, 2C-1324, 2C1324, 3D-2823, 3D2823, 3K-0360, 3K-7509, 3K0360, 3K7509, 5F-5405, 5F5405, 7F-2051, 7F2051)

1 x Gasket (6D1004)

1 x O-Ring Seal (6V5048, 188-7535, 1887535, 6V-5048, 9X-0934, 9X0934)

1 x Oil Cooler Set

2 x O-Ring Seals (617540)

3 x O-Ring Seals (6V4367)

1 x O-Ring Seals (6V5048, 1887535, 6V-5048, 9X-0934, 188-7535, 9X0934 )

3 x O-Ring Seals (6V5134)

1 x O-Ring Seal (8C5230)

1 x O-Ring Seal (8J4351)

1 x O-Ring Seal (619455)

1 x O-Ring Seal (1076280)

1 x Gasket (1558725)

1 x O-Ring Seal (0618561, 618561)

1 x Gasket (4H7869, 3911100)

1 x O-Ring Seal (5P7701)

1 x O-Ring Seal (5P7814, 9X0935, 5P-7814, 9X-0935)

1 x Gasket (7C1583)

1 x Gasket (1011635)

2 x O-Ring Seals (1173036)

2 x O-Ring Seals (2N475)

2 x O-Ring Seals (5P8068)

1 x O-Ring Seal (5S9134, 8M3089)

2 x O-Ring Seals (6V3831)

1 x O-Ring Seal (6V3834)

1 x Rear Crankshaft Seal (2264757)

1 x External Oil Pump Set

1 x O-Ring Seal (0618561)

2 x O-Ring Seals (5P8068)

1 x O-Ring Seal (6D7146)

1 x O-Ring Seal (6V3834)

3 x O-Ring Seals (6V5134)

1 x O-Ring Seals (8J4351)

1 x Rear Cover Set

2 x O-Ring Seals (619455)

1 x O-Ring Seals (1076280)

1 x Gasket (1558725)

1 x Gasket (4H7869, 3911100)

1 x O-Ring Seal (5P7701)

1 x O-Ring Seal (5P7814, 9X0935, 5P-7814, 9X-0935)

1 x Gasket (7C1583)

1 x Rear Crankshaft Seal (2264757)

Application & Fitment

• Engine Make: Caterpillar
• Engine Model / Application: C10/C11/C12/C13

Confirm the original part number and engine identification before ordering. Where applicable, also verify serial-number range, production year, piston style, bearing size or other configuration notes shown in the product information.

Part Numbers & Cross References

• Interstate-McBee Reference: MCBC12021

Need Help Confirming Fitment?

Use the engine model, serial number and original part number when checking compatibility. For kits and sets, review the complete component breakdown above before ordering because contents can vary by engine configuration.

Weight	15 lbs
Dimensions	18 × 3 × 50 in
