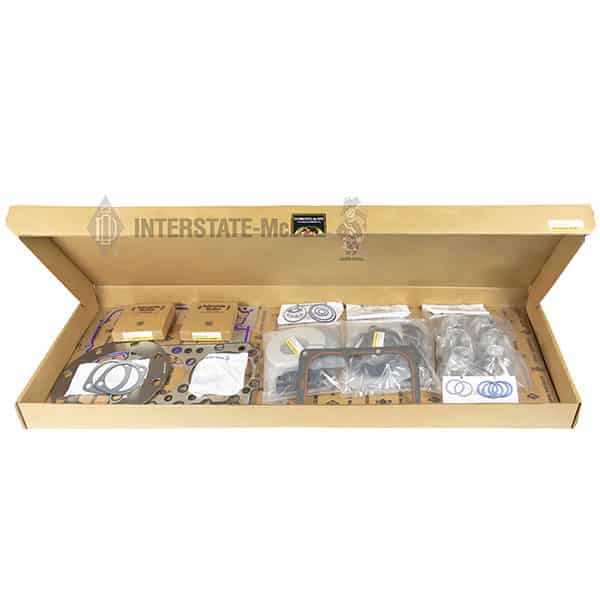

Replacement Inframe Gasket Set for Caterpillar ® 3406E/C15/C16 Applications 3406E – 1LW, 1MM, 2WS, 5DS, 6TS

What’s Included

1 x In-Chassis Gasket Set

Engine S/N: Caterpillar 3406E | MCB3406472 | 1LW, 1MM, 2WS, 5DS, 6TS

In-Chassis Gasket Set Includes:

1 x Air Inlet Manifold Gasket | 1013125

1 x Seal | 1036045

1 x Regulator Gasket | 1048585

1 x O-Ring Seal | 1090093

6 x Exhaust Manifold Gasket | 1095313

1 x O-Ring Seal | 1125282

1 x O-Ring Seal | 1142687

1 x O-Ring Seal | 1178801

1 x Integral Seal | 1262702

1 x Integral Seal | 1262704

6 x Exhaust Manifold Gasket | 1384611

1 x Regulator Gasket | 1393550

1 x Drain back Seal | 1422329

24 x Valve Stem Seal | 1632478

6 x O-Ring Seal | 1662903

6 x O-Ring Seal | 1662904

1 x Turbocharger Gasket | 1S4295

1 x Cylinder Head Shim | 2271204

6 x O-Ring Seal | 2303728

6 x O-Ring Seal | 2303775

3 x Rocker Cover Seal | 2429537

1 x Gasket | 2A3398

1 x O-Ring Seal | 2M9780

6 x O-Ring Seal | 329313

2 x O-Ring Seal | 336042

1 x Cylinder Head Gasket | 3590908

1 x O-Ring Seal | 3D2824

24 x Water Grommet | 3E6772

2 x Thermostat Seal | 3S9643

2 x O-Ring Seal | 4F7390

2 x One Piece Oil Pan Gasket | 4N1151-6

1 x Regulator Housing Gasket | 4N1156

1 x O-Ring Seal | 5E8771

2 x O-Ring Seal | 5H7704

1 x Valve Cover Seal Stock | 5P5678-9

1 x O-Ring Seal | 5P5846

1 x O-Ring Seal | 5P8068

2 x O-Ring Seal | 5P840

1 x O-Ring Seal | 6J2245

1 x O-Ring Seal | 6V1197

1 x Seal | 6V128

1 x O-Ring Seal | 6V5048

5 x O-Ring Seal | 6V5049

1 x O-Ring Seal

1 x O-Ring Seal

2 x O-Ring Seal

12 x O-Ring Seal

1 x O-Ring Seal

6 x Fuel Injector O-Ring Seal

6 x Injector Tube O-Ring Seal

1 x Regulator Housing Gasket

Application & Fitment

• Engine Make: Caterpillar
• Engine Model / Application: 3406E/C15/C16

Confirm the original part number and engine identification before ordering. Where applicable, also verify serial-number range, production year, piston style, bearing size or other configuration notes shown in the product information.

Part Numbers & Cross References

• Interstate-McBee Reference: MCB3406472

Need Help Confirming Fitment?

Use the engine model, serial number and original part number when checking compatibility. For kits and sets, review the complete component breakdown above before ordering because contents can vary by engine configuration.

Weight	13.08 lbs
Dimensions	13.5 × 3 × 43 in
