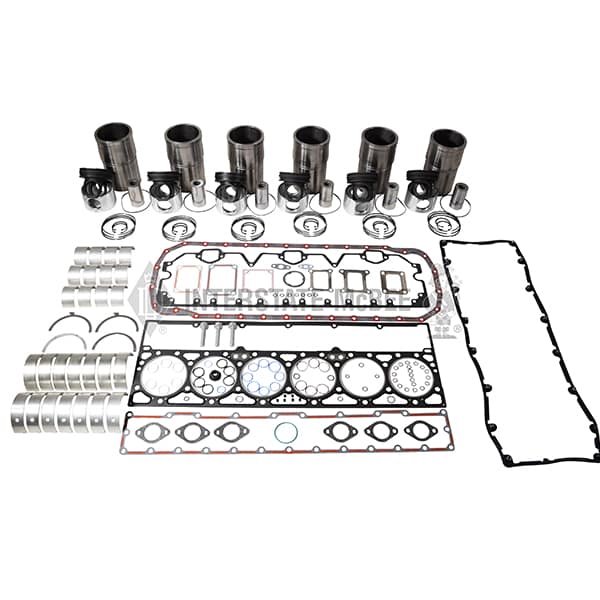

Replacement Inframe Kit for Cummins ® L10/M11/ISM/QSM Applications OEM Cross References: 4090008

Product Details

REBUILD KIT & GASKET SET

6 x Piston Kits | M-4025158

6 x Pistons | MCB9898

12 x Piston Pin Retainers | M-3016652

6 x Piston Pins | M-4083244

6 x Piston Ring Sets | 3803977 | 3803705

6 x Oil Control Rings | 3102367 | 3077354 | 3161808 | 3896226 | 3899561

6 x Second Piston Rings | 3899413

6 x Top Piston Rings | 3893752

6 x Cylinder Liner Kits | 3803703 | 3064627 | 3040882 | 3034816

6 x Cylinder Liners | 3080760

6 x Crevice Seals | 3047188 | 3030915

12 x Connecting Rod Bearings | 3016760

1 x O-Ring Seal | 3032787 | 145531

1 x Oil Pan Gasket | 3401290 | 3819980 | 3820952 | 3882733 | 4318308 | 5394102 | CUM3882733

2 x Lower Thrust Washers | 4023083 | 4926017 | 3161520

1 x Main Bearing Set | 4025125

1 x Main Bearing Set | 3801150M

4 x Upper Thrust Washers | 4023203 | 4926019 | 3822062 | 3161653 | 3028107

1 x Upper Engine Gasket Set | 4025157 | 4089478

1 x O-Ring Seal | 3040817 | 129858

6 x Exhaust Manifold Gaskets | 3026155 | 3102804 | 3328948 | 3819760

1 x O-Ring Seal | 3819871

1 x Turbocharger Gasket | 3819900

1 x Cover Plate Gasket | 3027277 | 3600882 | 3820872 | 3822069

19 x O-Ring Seals | 3867043 | 3882589

1 x Rocker Cover Gasket |3883220

1 x Turbocharger Gasket | 3899343

2 x Turbo Hose O-Ring Seals | 3922794 | 3883963

1 x Seal | 3042401

3 x Screws | 4022907 | 3161515 | 3045849

1 x O-Ring Seal | 3678912

1 x Turbo Oil Inlet O-Ring Seal | 3037537 | 118350

1 x Gasket | 3102361

1 x Gasket | 3066369 | 3069786

1 x O-Ring Seal | 3102802

1 x O-Ring Seal | 3163713

1 x O-Ring Seal | 3163714

2 x O-Ring Seals | 3163715

2 x O-Ring Seals | 3627695

2 x O-Ring Seals | 3678786

6 x Injector Top O-Ring Seals | 3070136

1 x Turbocharger Gasket | 3072919

1 x Turbocharger Gasket | 3755843 | 3016246

6 x Grommets | 3050867

1 x Rocker Lever Housing Gasket | 3027881 | 3035253 | 3039114 | 3883102 | 3892667 | 3896697 | 4070529 | 4973102

1 x Cylinder Head Gasket | 2864080 | 3037350 | 3044502 | 3044580 | 3328634 | 3328925 | 3820007 | 3882568 | 3883519 | 3883718 | 3893927 | 3899378 | 4022500

1 x Connection Gasket | 3070100

6 x Injector Mid O-Ring Seals | 3070137

6 x Injector Bottom O-Ring Seals | 3070138

1 x Gasket | 3088984

7 x Washers | 3028533 | 3328328 | 3821272 | 3882885

2 x Ring Seals | 3328464 | 3033898



CPL #	Model	APP	ECM
2199	ISM-335	A	CM570
2200	ISM-450	A	CM570
2350	ISM11M-450	A	CM570
2376	ISM-400
2477	ISM-450	A	CM570
2562	ISM-335	A	CM570
2563	ISM-450	A	CM570
2576	ISM-400	A	CM570
2607	ISM-330	A	CM570
2608	ISM-450	A	CM570
261	ISM-425	A
261	ISM-330	A
261	ISM-450	A
261	ISM-500	A
261	ISM-425	A

Application & Fitment

• Engine Make: Cummins
• Engine Model / Application: L10/M11/ISM/QSM

Confirm the original part number and engine identification before ordering. Where applicable, also verify serial-number range, production year, piston style, bearing size or other configuration notes shown in the product information.

Part Numbers & Cross References

• OEM Cross Reference: 4090008
• Interstate-McBee Reference: M-4090008

Need Help Confirming Fitment?

Use the engine model, serial number and original part number when checking compatibility. For kits and sets, review the complete component breakdown above before ordering because contents can vary by engine configuration.

Weight	195.00 lbs
Dimensions	0.00 × 0.00 × 0.00 in
