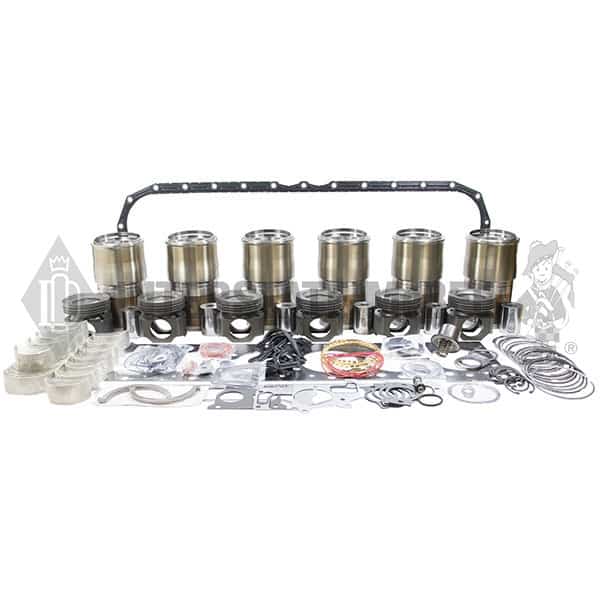

Inframe Rebuild Kit | Cummins ISX 15 / QSX 15 Engine | 5473066

Brand: Interstate Mcbee

SKU: HDK-5473066

$4,093.68

In Stock
  • Low Prices Price match guarantee
  • Guaranteed Fitment Always the correct part
  • Easy Returns Quick & Hassle Free
  • In-House Experts We know our products

Description

1 x In-Frame Rebuild Kit – 5473066

FIT: Cummins ISX15 / QSX15 / CM2250 / CM2350

Details:

Piston: 3688099 | Skirt Type: Closed | Top Ring Location: Low | Top Land Diameter: Reduced | Liner OD Size: 152mm

Piston: 3686366 | Skirt Type: Closed | Top Ring Location: Low | Top Land Diameter: Large | Liner OD Size: 152mm

Contents:

  • 6 x Cylinder Liner Kits
    • 6 x Cylinder Liners
    • 6 x Carbon Scraper Rings
    • 6 x Liner Seals
    • 6 x Liner Shims
  • 6 x Piston Kits
    • 6 x Engine Piston
    • 6 x Piston Pins
    • 12 x Retaining Rings
    • 6 x Piston Ring Sets
  • 1 x Main Bearing Set
  • 1 x O-Ring Seal
  • 1 x Bypass Valve Plunger
  • 1 x Oil Pan Gasket
  • 1 x Thermostats
  • 6 x Connecting Rod Bearings
  • 6 x Connecting Rod Bearings
  • 1 x Upper Engine Gasket Set
    • 1 x Thermostat Seal
    • 1 x O-Ring Seal
    • 1 x O-Ring Seal
    • 1 x O-Ring Seal
    • 1 x O-Ring Seal
    • 1 x Thermostat Housing Cover Gasket
    • 4 x Exhaust Manifold Gaskets
    • 2 x Grommet Seals
    • 1 x Exhaust Manifold Gasket
    • 1 x Water Seal
    • 5 x O-Ring Seals
    • 6 x XPI Copper Injector Seals
    • 2 x Sealing Washers
    • 1 x Thermostat Housing Gasket
    • 1 x Exhaust Outlet Gasket
    • 1 x Intake Manifold Gasket
    • 2 x O-Ring Seals
    • 1 x Water Seal
    • 1 x Turbocharger Gasket
    • 1 x Rectangular Ring Seal
    • 1 x Electrical Connector Seal
    • 1 x O-Ring Seal
    • 1 x Rectangular Strip Seal
    • 2 x Seal Carriers
    • 2 x Turbo Hose O-Ring Seals
    • 1 x O-Ring Seal
    • 1 x O-Ring Seal
    • 16 x Sealing Washers
    • 2 x Sealing Washers
    • 4 x Cavity Plugs
    • 2 x Sealing Washers
    • 1 x O-Ring Seal
    • 8 x Sealing Washers
    • 1 x Oil Drain Gasket
    • 1 x Exhaust Outlet Connection Gasket
    • 1 x Camshaft Cover Seal
    • 1 x Injector Gasket
    • 6 x O-Ring Seals
    • 3 x Gaskets
    • 1 x Valve Cover Gasket
    • 6 x HPI/XPI O-Ring Seals
    • 2 x O-Ring Seals
    • 1 x Grommet Seal
    • 1 x Camshaft Cover Gasket
    • 1 x Cylinder Head Gasket

OE Replacement

5473066

Warranty: 2 Years Parts & Labor

Additional information

Weight 220 lbs
Dimensions 48 × 42 × 24 in
