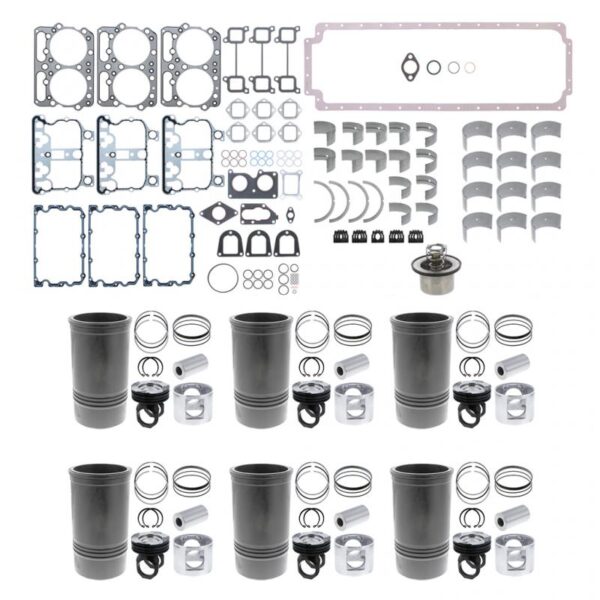

Inframe Rebuild Kit | Cummins N14 Engine | N14222-017 / 4024881
$2,885.92
In Stock
Inframe Rebuild Kit | Cummins N14 Engine | N14222-017 / 4024881 Rebuild Kit Includes: Quantity Part Number OEM Number Description 6 101098 N/A CYLINDER KIT 1 161601 3801826 LINER KIT 1 505057 4295801 PISTON RING SET 1 111496 N/A PISTON KIT 1 111479 N/A PISTON KIT 1 111170 3064304 PISTON PIN 1 171784F 3055145 […]
Categories:
Rebuild KitsSKU:
PAI-N14222-017Brand:
PAI IndustriesInframe Rebuild Kit | Cummins N14 Engine | N14222-017 / 4024881
Rebuild Kit Includes:
| Quantity | Part Number | OEM Number | Description |
| 6 | 101098 | N/A | CYLINDER KIT |
| 1 | 161601 | 3801826 | LINER KIT |
| 1 | 505057 | 4295801 | PISTON RING SET |
| 1 | 111496 | N/A | PISTON KIT |
| 1 | 111479 | N/A | PISTON KIT |
| 1 | 111170 | 3064304 | PISTON PIN |
| 1 | 171784F | 3055145 | ROD BEARING (STD) |
| 12 | 171784 | 3055145 | ROD BEARING (STD) |
| 1 | 171720 | 3801260 | BEARING KIT |
| 1 | 171000 | 3801260-100 | BEARING KIT |
| 14 | 171695 | 3009213 | LOCKPLATE |
| 4 | 171700 | 3019218 | THRUST BEARING |
| 1 | 131264 | 4089371 | UPPER GASKET SET |
| 1 | 131264-150 | N/A | VALVE COVER GASKET KIT |
| 3 | 131275 | 3066311 | ROCKER COVER GASKET |
| 3 | 131427 | 4058981 | ROCKER GASKET |
| 1 | 621211 | 23505891 | O-RING |
| 1 | 131264-152 | N/A | COOLING GASKET KIT |
| 1 | 131464 | 3064313 | THERMOSTAT GASKET |
| 1 | 131484 | 3865195 | THERMOSTAT HOUSING GASKET |
| 1 | 131485 | 3865236 | THERMOSTAT HOUSING COVER GASKET |
| 3 | EGA-1660 | 446GC175 | O-RING |
| 6 | 121229 | 3050667 | O-RING |
| 1 | 131264-156 | N/A | EXHAUST GASKET KIT |
| 6 | 131324 | 3020943 | EXHAUST MANIFOLD GASKET |
| 3 | 131400 | 3865235 | EXHAUST MANIFOLD GASKET |
| 3 | 131555 | 4058790 | HEAD GASKET |
| 1 | 131264-155 | N/A | TURBOCHARGER INSTALLATION KIT |
| 1 | 131370 | 3069177 | TURBO MOUNTING GASKET |
| 1 | 131298 | 201048 | CONNECTION GASKET |
| 1 | 121227 | 3037537 | O-RING |
| 1 | 131264-157 | N/A | INTAKE GASKET KIT |
| 3 | 131312 | 3008591 | INTAKE GASKET |
| 1 | 121177 | 3068510 | RECTANGULAR SEALING RING |
| 1 | 1056 | N/A | SHEET,INST.SET,GASKET |
| 1 | 131264-154 | N/A | FUEL GASKET KIT |
| 12 | 121214 | 131026 | O-RING |
| 1 | 121190 | N/A | INJECTOR O-RING KIT |
| 6 | 121197 | 3070136 | O-RING |
| 6 | 121198 | 3070137 | O-RING |
| 6 | 121199 | 3070138 | O-RING |
| 1 | 1127 | N/A | SHEET,INST.INJ.O-RINGS |
| 3 | EGK-3866 | 590GB1352 | WASHER |
| 1 | 131394 | 3804303 | OIL PAN GASKET INSTALLATION KIT |
| 1 | 131394-300 | N/A | PAN GASKET KIT |
| 1 | 121224 | 3029847 | O-RING |
| 1 | 131295 | 157551 | OIL SUCTION TUBE CONNECTION GASKET |
| 1 | 131391 | 67946 | WASHER |
| 1 | 136011 | 3034986 | RECTANGULAR SEALING RING |
| 1 | 131347 | 3032861 | OIL PAN GASKET |
| 1 | 1299 | N/A | UPDATED ENGINE HANG TAG |
| 2 | 181887 | 4336659 | THERMOSTAT |
Details:
Inframe Engine Rebuild Kit For Cummins N14 Series Engine Application
This kit Contains 2pc Pistons
OE Replacements: N14222-017, CUPN14222-017, 4024881
| Weight | 231.6 lbs |
|---|---|
| Dimensions | 25 × 20 × 17 in |
