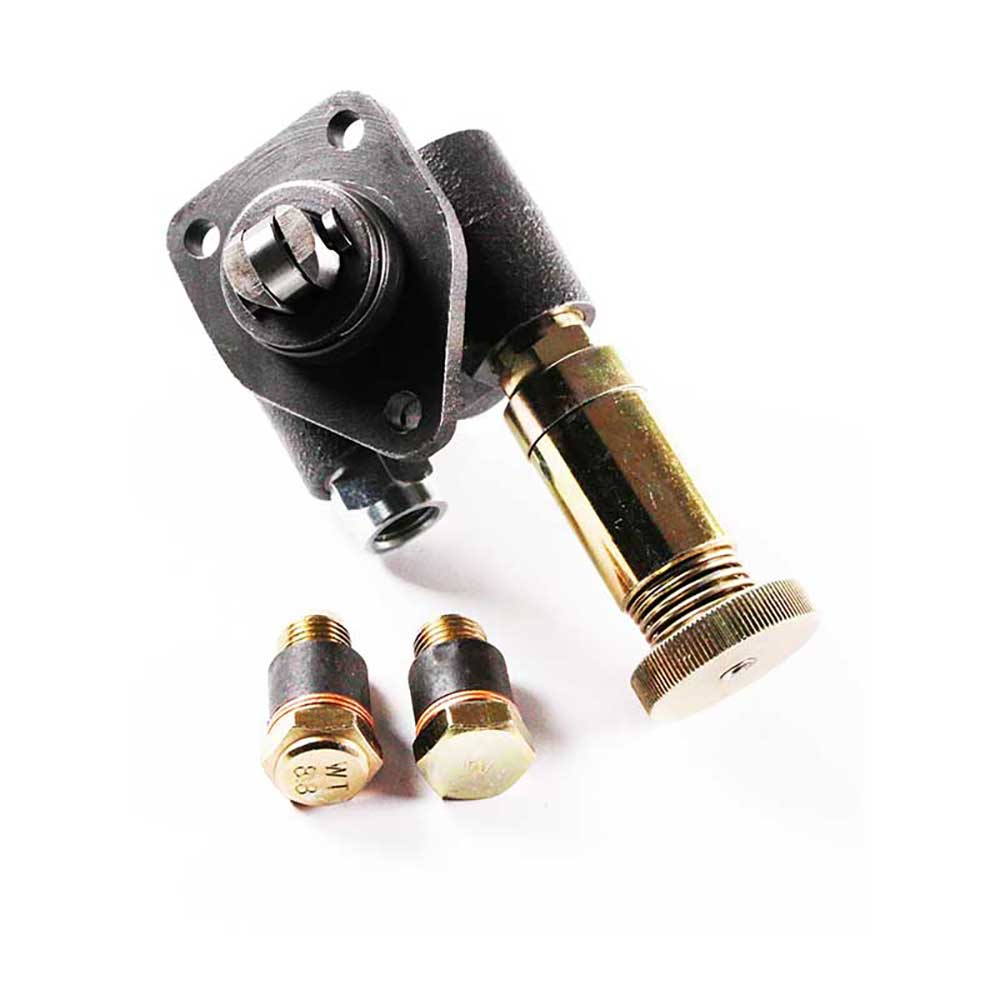

Komatsu Fuel Feed Pump DK105220-5280

The Komatsu Fuel Feed Pump DK105220-5280 is identified in the supplied parts catalog as a FUEL SYSTEM for specific Komatsu diesel engine and equipment configurations. Cataloged engine models include 4D95L-W-1, S6D95L-1, and SA6D95L-1. Listed machine applications include WA40-1, WA70-1, PC150-3 / LC-3, PC180LC-C / LC-3K, and PC180LLC-C / LLC-3K. Use the complete model and serial-number details below to compare this part with the equipment being serviced.

What is DK105220-5280 used for?

Part number DK105220-5280 is cataloged as a Fuel Feed Pump. It appears in the FUEL SYSTEM parts group. The correct selection depends on the engine model, machine model, and the applicable serial-number range.

Compatible engine models

4D95L-W-1, S6D95L-1, SA6D95L-1

Engine models with serial-number ranges

4D95L-W-1 (Build 1A) ? 10001-Up | S6D95L-1 (Build 2E) ? 10001-Up | S6D95L-1 (Build 2F) ? 35360-Up | SA6D95L-1 (Build 2J) ? 35398-Up

Application models without serial numbers

WA40-1, WA70-1, PC150-3 / LC-3, PC180LC-C / LC-3K, PC180LLC-C / LLC-3K, PC180NLC-3K, PW100-3, WA150-1, WA180-1, GD510R-1, GD511A-1, PC150-5 / LC-5, PC200-5C, PC200-5 / LC-5, PC200-5 /LC-5, PC200-5T, PC200-5Z, PC200-5 / LC-5, PC220-5, PC220LC-5, PC220LC-5

Applications with serial-number ranges

WA40-1 S/No. 1001-Up, WA70-1 S/No. 10001-Up, PC150-3 / LC-3 S/No. 3001-Up, PC180LC-C / LC-3K S/No. 1001-Up, PC180LLC-C / LLC-3K S/No. 1001-Up, PC180NLC-3K S/No. 1001-Up, PW100-3 S/No. 1601-Up, WA150-1 S/No. 10001-Up, WA180-1 S/No. 10001-Up & A10375-Up, GD510R-1 S/No. 15001-Up, GD511A-1 S/No. 10001-Up, PC150-5 / LC-5 S/No. 6001-Up, PC200-5C S/No. 45001-Up, PC200-5 / LC-5 S/No. 45001-Up, PC200-5 /LC-5 S/No. A47282-A70000, PC200-5T S/No. 58019-Up, PC200-5Z S/No. 45001-Up, PC200-5 / LC-5 S/No. A70001-Up, PC220-5 S/No. 35001-Up, PC220LC-5 S/No. 35001-Up, PC220LC-5 S/No. A35401-A70000-Up

How do I confirm fitment?

Match DK105220-5280 to the existing part number and verify the complete engine model, equipment model, and serial number. A shared model name does not confirm compatibility because production changes can affect the required component.

Frequently asked question

Will DK105220-5280 fit every listed Komatsu machine?
No. Fitment is limited to the cataloged engine, application, and serial-number combinations. Confirm all identifying information before ordering.
