Replacement Inframe Kit for Navistar ® MAXX FORCE Applications Cross Reference OEM Cross References: 2516371C92 Superseded/Alternate Numbers: M-1889239C98, M-2513984C91, M-2516371C91, M-2513984, M-2513984C92

What’s Included

International/Navistar MaxxForce DT 7.6L Engine In-Frame Rebuild Kit OEM 1889239C99

This Kit is Compatible With Two Type of OEM Products Mentioned Below

OEM: 1889239C99 / 2516371C92 / 2516371C91

Navistar MaxxForce DT Diesel Engine

Engine Serial Number: From 3000001 To 3300000

HP: 255-300HP, 245-300HP

Engine CID: 466

Bore: 4.587″

Rod Journal: 3.1494-3.1506″

Stroke: 4.680″

Main Journal: 4.2494-4.2506″

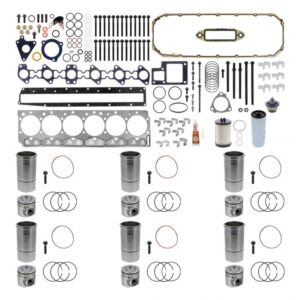

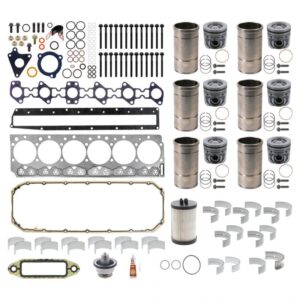

In-Frame Kit:

6 x Liner Kits (Includes set of crevice seals)

6 x Pistons

6 x Piston Ring-Sets

6 x Piston Pin & Retainers

1 x Head Gasket Set

1 x Main Bearing Set (Std.)

1 x Rod Bearing Set (Std.)

1 x Thrust Washer Set

1 x Set of Injector O-Rings

1 x Oil Pan Gasket

1 x Head bolts set

Application & Fitment

• Engine Make: Navistar
• Engine Model / Application: MAXX FORCE

Confirm the original part number and engine identification before ordering. Where applicable, also verify serial-number range, production year, piston style, bearing size or other configuration notes shown in the product information.

Part Numbers & Cross References

• OEM Cross Reference: 2516371C92
• Alternate / Superseded: M-1889239C98, M-2513984C91, M-2516371C91, M-2513984, M-2513984C92
• Interstate-McBee Reference: M-2516371C92

Need Help Confirming Fitment?

Use the engine model, serial number and original part number when checking compatibility. For kits and sets, review the complete component breakdown above before ordering because contents can vary by engine configuration.
