Paccar MX13 Engine Rebuild Kit | EPA13 / 2014-2017

Restore Engine Performance with this Premium In-Frame Overhaul Kit. Designed to provide technicians with the major components required for a comprehensive in-frame rebuild, this kit helps streamline the overhaul process by supplying critical engine, sealing, fuel, lubrication, and filtration components in a single package. The in-frame overhaul option allows repairs to be completed while the engine remains installed in the chassis, reducing vehicle downtime and minimizing service complexity.

• MATCHED COMPONENT PACKAGE: Carefully selected overhaul components are OE Suppliers or Validated Equivalent designed to work together, simplifying parts procurement and helping ensure a successful rebuild.
• COMPLETE SEALING SYSTEM COVERAGE: Includes head gasket, gasket sets, seals, O-rings, and related hardware to help restore engine sealing integrity and minimize leak-related comebacks.
• BOTTOM-END REBUILD SUPPORT: Contains pistons, liners, connecting rod bearings, main bearings, and thrust washers to help restore engine performance and long-term reliability.
• FUEL SYSTEM SERVICE COMPONENTS INCLUDED: Supplied with six Delphi injectors and supporting fuel system parts to help complete a more comprehensive engine overhaul.
• SERVICE PARTS INCLUDED: Fuel and oil filtration components are included to help technicians complete critical maintenance items during engine reassembly.

Applications

• Paccar, MX13 Engines EPA13
• Model Years: 2014-2017

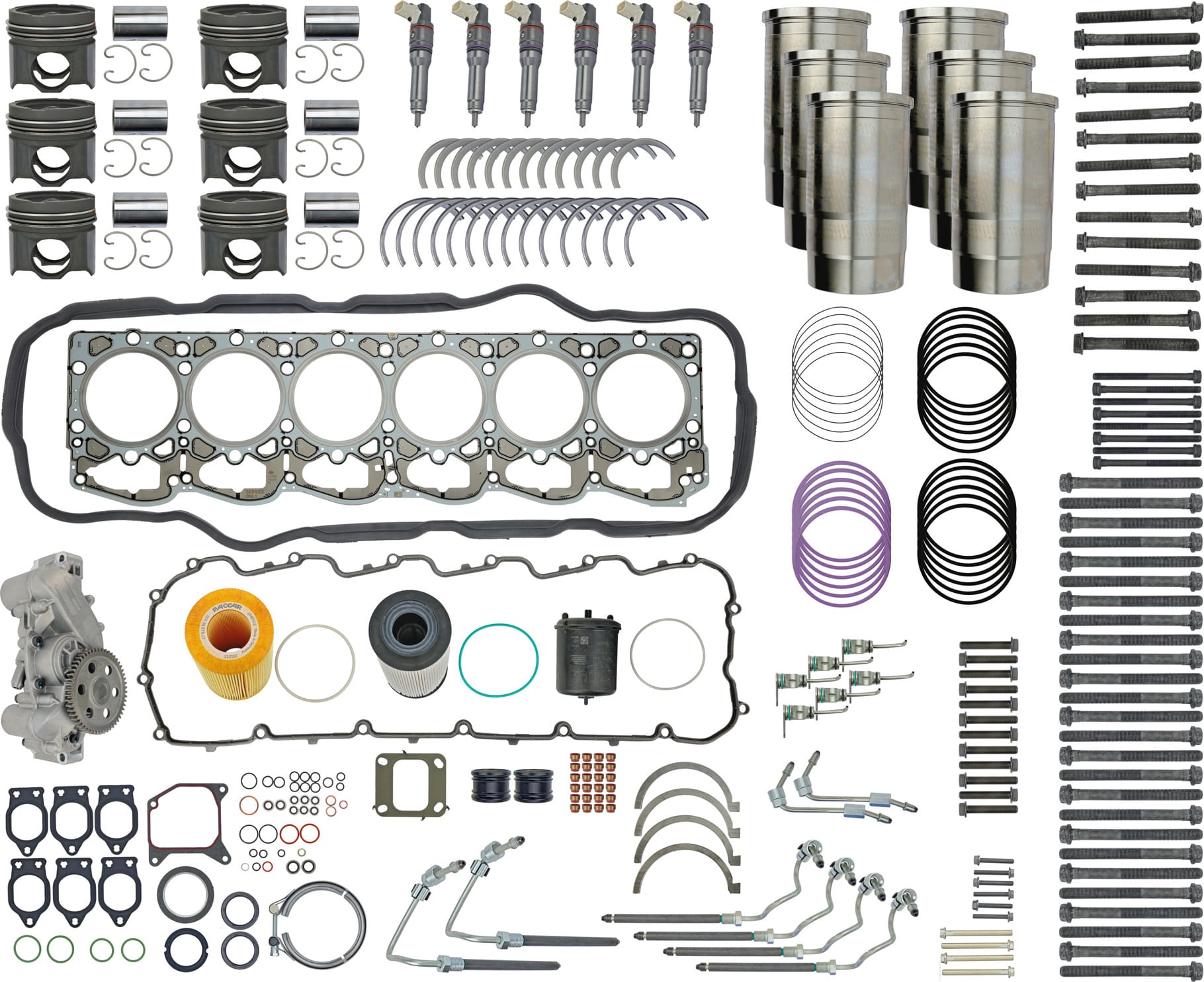

Included in the Box

• 1x Oil Drain Plug Seal OE Equivalent # 0119135pe
• 2x Pressure Sensor Pipe, After BPV Crush Washers OE Equivalent # 0331328pe
• 2x Injector Harness Pass Through O-Rings OE Equivalent # 1305195pe
• 6x Injector Hold Down Bolts OE Equivalent # 1313120pe
• 2x Oil Pump Pick Up Tube O-Ring OE Equivalent # 1608393pe
• 2x Oil Pump Pick Up Tube O-Ring OE Equivalent # 1608394pe
• 1x Crankshaft Thrust Washer Kit, Standard OE Equivalent # 1736755pe
• 1x EGR Valve Flange Gasket OE Equivalent # 1786103pe
• 24x Valve Stem Seals OE Equivalent # 1819065pe
• 14x Main Bearing Cap Bolts OE Equivalent # 1822165pe
• 2x Injector Leak Pipe Crush Washers OE Equivalent # 1844625pe
• 6x Crush Washers OE Equivalent # 1858035pe
• 1x Rod Bearing Kit, Standard OE Equivalent # 1858819pe, 1655712pe
• 2x EGR Cooler Coolant Pipe Seals OE Equivalent # 1863266pe
• 12x Connecting Rod Bolts OE Equivalent # 1878508pe
• 4x Turbo Flange Mounting Bolts OE Equivalent # 1895972pe
• 2x EGR Air Bleed Pipe Crush Washers OE Equivalent # 1898204pe
• 1x Intake Gasket OE Equivalent # 1907399pe
• 1x Centrifugal Oil Filter Element OE Equivalent # 1922496pe
• 2x Exhaust Pipe Seals OE Equivalent # 1924315pe
• 1x Valve Cover Gasket OE Equivalent # 1924761pe
• 1x Oil Pan Gasket OE Equivalent # 1925946pe
• 4x Injector Lines, Cylinders 1-4 OE Equivalent # 1932625pe
• 2x Injector Lines, Cylinders 5, 6 OE Equivalent # 1932626pe
• 6x Cylinder Liner Kits, Standard OE Equivalent # 1935136pe
• 1x Fuel Rail Pressure Relief Pipe O-Ring OE Equivalent # 1935753pe
• 1x Engine Oil Filter OE Equivalent # 1948921pe
• 6x Piston Coolers OE Equivalent # 1956920pe
• 2x Turbo Oil / Coolant O-Rings OE Equivalent # 1960576pe
• 6x Turbo Oil / Coolant O-Rings OE Equivalent # 1961490pe
• 6x Fuel Injectors OE Equivalent # 1972591pe
• 1x Oil Pump OE Equivalent # 1973051pe
• 1x EGR Coolant Pipe O-Ring OE Equivalent # 1974189pe
• 1x EGR Coolant Pipe O-Ring OE Equivalent # 1974190pe
• 1x EGR Coolant Pipe O-Ring OE Equivalent # 1974191pe
• 1x Exhaust Back Pressure Pipe O-Ring, Before Turbo OE Equivalent # 1976264pe
• 6x Piston Kits, Standard OE Equivalent # 1976615pe
• 1x V-Band Clamp – Turbo Outlet OE Equivalent # 1979194pe
• 2x EGR Coolant Pipe O-Rings OE Equivalent # 1982773pe
• 2x Turbo Oil Return Line O-Rings OE Equivalent # 1982774pe
• 1x Turbo Coolant Supply Line O-Ring OE Equivalent # 1982776pe
• 1x O-Ring OE Equivalent # 2004292pe
• 1x EGR Cooler Flange Gasket OE Equivalent # 2035973pe
• 1x Turbo Flange Gasket OE Equivalent # 2106210pe
• 1x EGR Coolant Pipe Sealing Set OE Equivalent # 2131925pe
• 6x Exhaust Manifold Gaskets OE Equivalent # 2138143pe
• 1x Main Bearing Kit, Standard OE Equivalent # 2239665pe, 2239664pe
• 1x Filter – Fuel OE Equivalent # 2277129pe
• 1x Cylinder Head Bolt Kit OE Equivalent # 230119pe + 1822941pe
• 1x Head Gasket – Service Level OE Equivalent # 2312234pe
• 2x Pump To Rail Injection Lines OE Equivalent # 2405076pe
