Cummins 6BTA 5.9 Piston (m): 2571



Engine Series: B Series

Engine Model: 6BTA 5.9

Engine Desc: (CDC 6.590)

Engine Data: TURBOCHARGED AFTERCOOLED EMISSION

Engine Info: 6 Cylinder

Engine Dimensions: 359 Cubic Inch

Bore: 4.02 in / 102 mm

Stroke: 4.72 in / 119 mm

Piston (m): 2571



Equipment Models

Cummins CPL’s: 1549, 1550, 1815, 1816, 1863, 1901, 1959, 1968, 2022, 2023, 2174, 2265, 2268, 2292, 2308, 2346, 2349

Skidder: F66G – Ranger, F66DS – Ranger, F67 – Ranger, F67G – Ranger, G67G – Ranger, F667 – Ranger

LiuGong: 614H – Vibratory compactors

YTO: LRS2030 – Pneumatic Roller

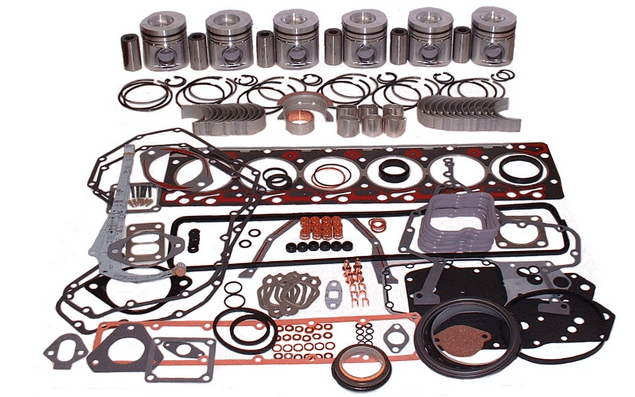

Kit Contents:



Quantity:	Item #:	Description:
1	C3802070	BRG, MAIN SET STD 6B
1	C3802363	GASKET, TOP SET 6B
1	C3802376	GASKET, BOTTOM SET 6B
1	C3901306	BUSHING, CAM B SERIES
1	C3940059	BUSHING, CAMSHAFT B SERIES
1	C3904353	SEAL, CRANKSHAFT FRONT
1	C3353978	SEAL CRANKSHAFT REAR B/C
6	C3802487	KIT, PISTON STD B SERIES
6	C4891178	BUSHING, CON ROD B SERIES
12	C3901170	BRG, CON ROD STD B SERIES





Weight	31 lbs
